| 220V / 200 Amp service | ||

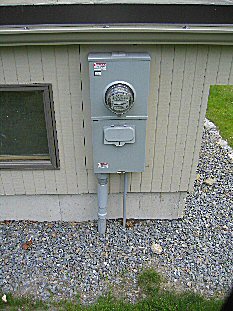

| Main Breaker is at meter | ||
| Panel in basement is a subpanel, so neutrals and grounds must be run on separate buses | ||
| history | ||
| Dec-02 | main
service line from street relocated to build shop new meter installed basement panel rewired as subpanel |
|
| Aug-02 | kitchen project- all kitchen circuits redone and brought up to code | |

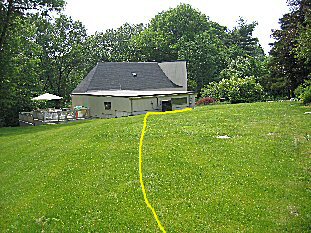

approx path of buried electric cable. as near as i can tell, it's about down about 3' in a conduit. when it gets down to the house, it does a 45 degree turn and follows the foundation. it doesn't pop up until the fuse box. |
||

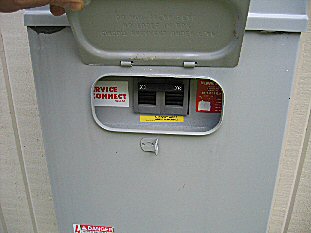

 main breaker outside shop |
 panel location |
| service providers | ||
| power company | ||
| nstar | ||
| electrician | ||
| larry
caley 978-365-6960 (home) 978-490-4635 (cell) |
||
| notes | ||
| Bryant Circuit Breaker BR120 cu-al SWD | ||
| Murray breakers also work. | ||
| Breaker Panel Layout | |||||
| 1 | | | 16 | | | ||
| | Dryer | | Well Pump | ||||
| 2 | | Dryer | 17 | | Well Pump | ||
| | | | | ||||
| 3 | Dining Lights | 18 | Outlet at panel; shop outlets | ||
| 4 | Front Hall | 19 | | | ||
| | Sewer Pump | |||||
| 5 | Kitchen counter circuit 1 | 20 | | Sewer Pump | ||
| | | |||||
| 6 | Kitchen counter circuit 2 | 21 | | | ||
| | A/C | |||||
| 7 | Refrigerator | 22 | | A/C | ||
| | | |||||
| 8 | Microwave | 23 | Kitchen Island | ||
| 9 | 2nd Floor | 24 | Washer | ||
| 10 | A | 2nd Floor | 25 | A | tank alert |
| B | Heat | B | Heat | ||
| 11 | Basement BL? | 26 | A | Basement Lights | |
| B | LR Plugs | ||||
| 12 | Dishwasher | 27 | A | Garage / Entry | |
| B | Kitchen Lights | ||||
| 13 | Disposal, undercounter lights | 28 | Bath and Outside Lights | ||
| 14 | | | 29 | A | UPS for Rack | |
| | hot tub | B | Dining Plugs | |||
| 15 | | hot tub | 30 | A | ??? | |
| | | B | (unused) | |||
